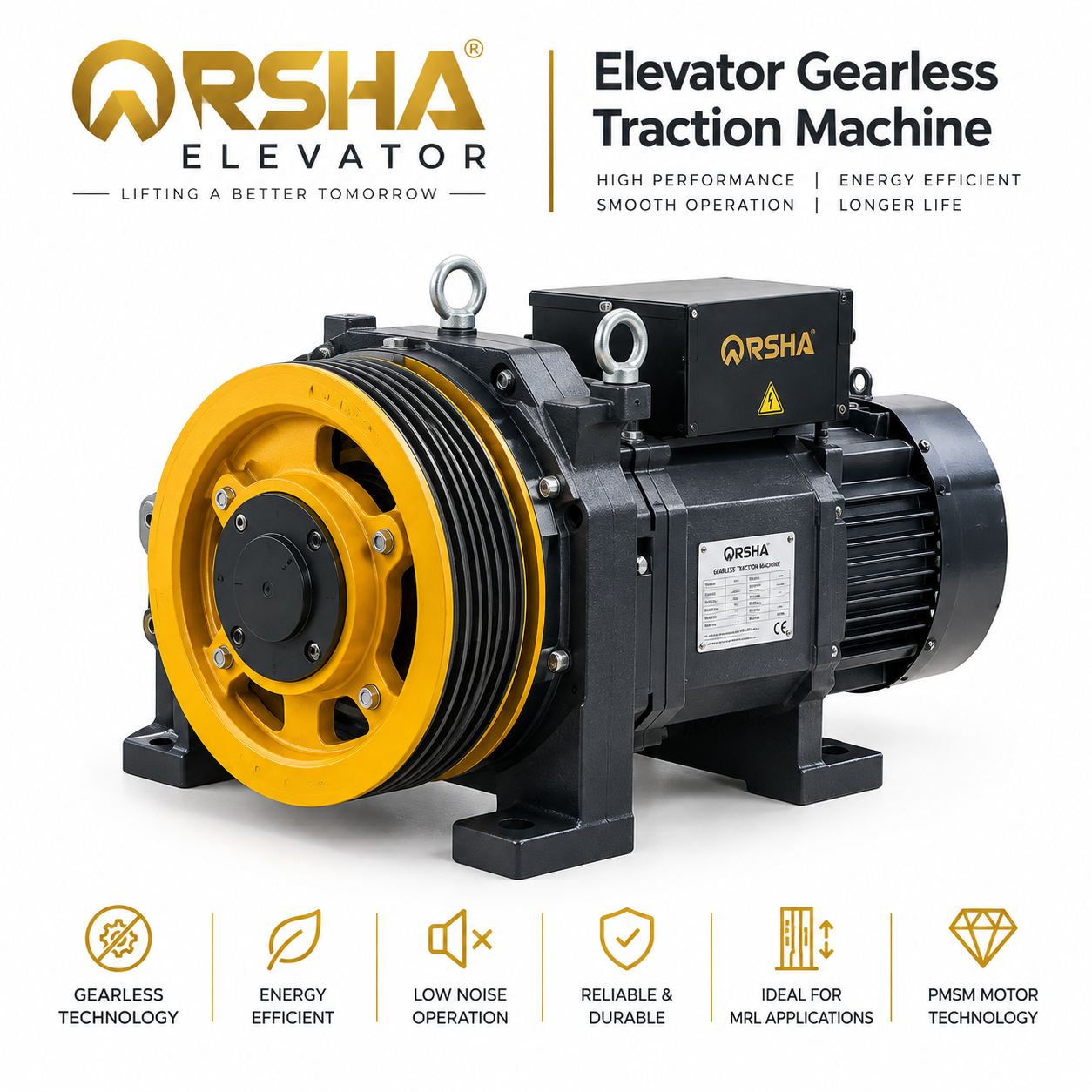

Elevator Gearless Traction Machine

Elevator Gearless Traction Machine

The Elevator Gearless Traction Machine is designed for modern passenger elevator systems where smooth operation, energy efficiency, low noise and reliable performance are important. Gearless traction technology eliminates the conventional gearbox and provides direct, efficient transmission of power to the traction sheave.

It is suitable for Machine Room-Less (MRL) elevator applications and can be selected according to elevator capacity, speed, suspension ratio, shaft configuration and project requirements.

Reliable Gearless Elevator Technology

A gearless traction machine uses a permanent magnet synchronous motor (PMSM) to drive the traction sheave directly without a traditional gearbox. This design helps provide smooth acceleration and deceleration, accurate elevator movement and efficient operation.

The correct traction machine should always be selected according to the technical specifications of the elevator system.

Key Features

• Gearless traction technology
• Permanent Magnet Synchronous Motor (PMSM) design
• Smooth and quiet elevator operation
• Energy-efficient motor performance
• Compact design suitable for MRL applications
• Low vibration during normal operation
• Designed for reliable passenger elevator service
• Supports precise speed and movement control
• Reduced mechanical transmission components
• Suitable for new elevator installations and modernization projects
• Compatible with supported VVVF elevator drives and controllers
• Professional installation and commissioning supported

Applications

The Elevator Gearless Traction Machine can be used in various passenger elevator applications, including:

• Residential apartments
• Commercial buildings
• Office complexes
• Hotels
• Hospitals
• Shopping complexes
• Institutional buildings
• New MRL elevator installations
• Elevator modernization projects

Machine selection should be based on the actual elevator design and technical requirements.

MRL Elevator Application

Gearless traction machines are widely used in Machine Room-Less elevator systems because of their compact construction and efficient operation. Depending on the elevator design, the machine can be installed within the hoistway at a suitable engineered location.

Machine mounting position, supporting structure, traction arrangement and available installation space should be verified before installation.

Capacity and Speed Selection

The correct machine capacity and speed depend on several factors, including:

• Rated elevator load
• Number of passengers
• Rated elevator speed
• Suspension or roping ratio
• Traction sheave specification
• Travel height
• Number of floors and stops
• Counterweight arrangement
• Shaft dimensions
• Motor and drive requirements

Technical calculations should be completed before final machine selection.

VVVF Drive & Controller Compatibility

The Elevator Gearless Traction Machine should be matched with a compatible VVVF drive and elevator controller. Motor voltage, rated current, encoder type, power rating and control requirements must be checked before commissioning.

Correct parameter configuration is essential for smooth starting, stopping, floor leveling and overall elevator performance.

Roping and Traction System

The traction machine works together with the elevator suspension system to move the car and counterweight. Rope diameter, quantity, traction sheave dimensions, suspension ratio and required traction conditions should be selected according to the elevator design.

Incorrect rope or sheave selection may affect performance and service life.

Safety and Installation

Installation of an Elevator Gearless Traction Machine should be carried out by qualified elevator technicians. Machine mounting, supporting structure, electrical connections, encoder wiring, brake operation, traction system and safety-related components should be inspected carefully during installation and commissioning.

The complete elevator system should be tested before passenger operation.

Maintenance

Regular inspection and preventive maintenance help maintain reliable traction machine performance. Brake condition, electrical connections, encoder operation, bearings, traction sheave, suspension ropes and mounting arrangements should be inspected periodically by qualified elevator personnel.

Suitable for New Installation & Modernization

The Elevator Gearless Traction Machine can be selected for new elevator projects as well as suitable modernization applications. For modernization projects, the existing shaft, car and counterweight arrangement, controller, drive, suspension system and structural conditions should be evaluated before selecting a replacement machine.

Why Choose ORSHA Elevator & Technology?

ORSHA Elevator & Technology supplies elevator components and solutions for new installations, modernization and maintenance projects. Gearless traction machines can be selected according to project requirements, elevator capacity, speed and compatible control systems.

For correct product selection, please provide the required passenger capacity, rated load, elevator speed, travel height, roping ratio, shaft details and controller or drive specifications before ordering.

For enhanced elevator door safety, you can also explore our Elevator Controller & Control Panel

Note: Product model, appearance, dimensions, motor rating, load capacity, speed, traction sheave specifications, encoder and other technical specifications may vary according to the selected model and project requirements. Final technical specifications and compatibility should be confirmed before purchase and installation.

Elevator Safety Standards

For information about applicable Indian standards and safety requirements for elevators and elevator components, please refer to the Bureau of Indian Standards (BIS).
