Elevator Buffer

Elevator Buffer

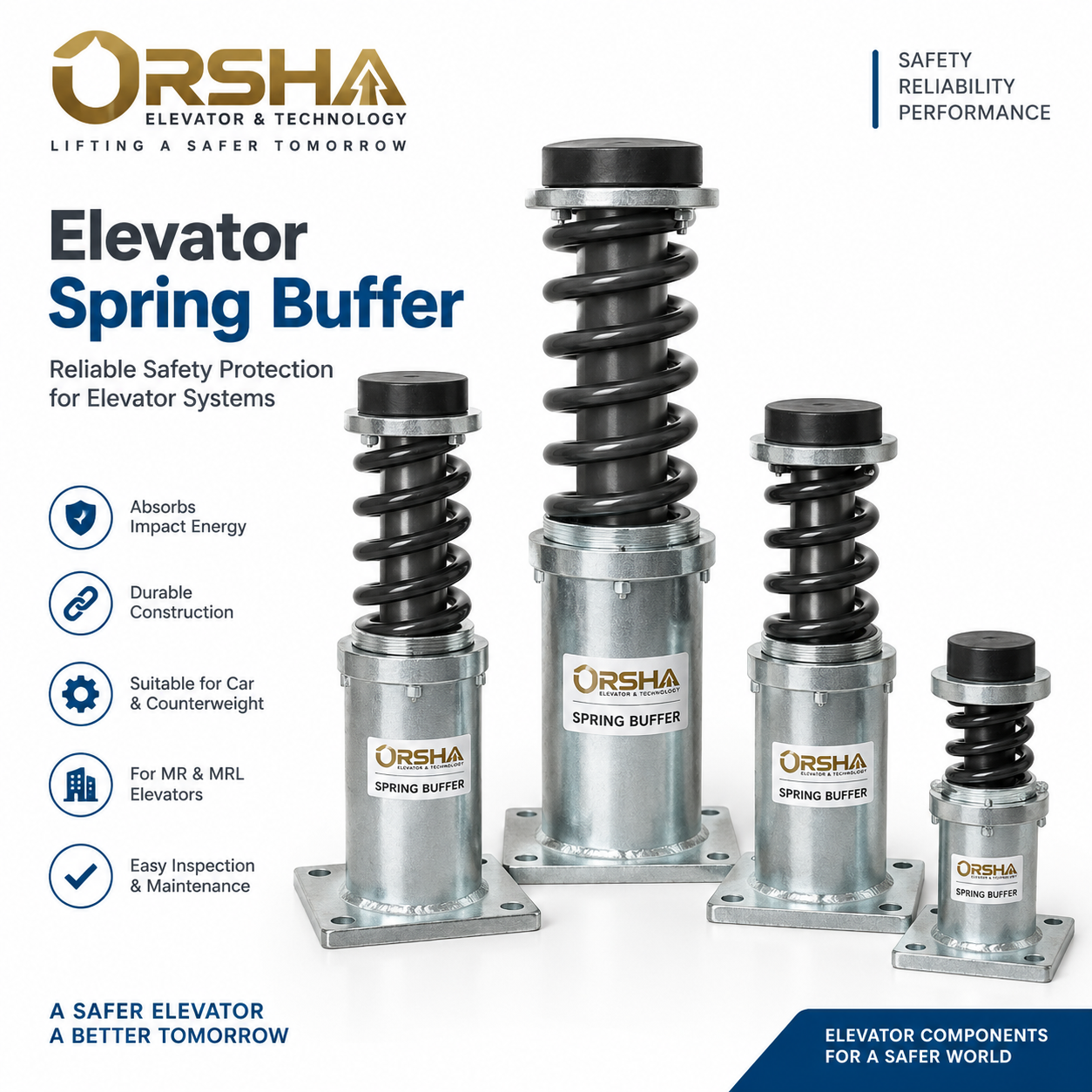

The Elevator Buffer is an important safety component installed in the elevator pit to help absorb and reduce impact energy if the elevator car or counterweight travels beyond its normal lowest operating position.

Elevator buffers are available in different designs, including polyurethane or spring-type buffers for suitable applications and hydraulic or oil buffers for elevator systems requiring higher energy absorption. The correct buffer must be selected according to elevator rated load, rated speed, car and counterweight configuration, available pit space and project requirements.

Reliable Elevator Pit Safety Protection

The elevator buffer forms part of the complete elevator safety system. During abnormal downward travel, the buffer is designed to provide controlled energy absorption according to its specified operating characteristics.

Correct selection, positioning and installation are essential for reliable operation.

Key Features

• Designed for elevator pit safety applications
• Helps absorb impact energy
• Suitable for elevator car and counterweight applications
• Hydraulic/Oil and polyurethane configurations available according to requirement
• Durable construction
• Suitable for passenger elevator systems
• Available for different load and speed requirements
• Suitable for compatible MR and MRL elevators
• Designed for new installations and modernization projects
• Easy inspection and maintenance according to model
• Professional elevator installation supported

Applications

The Elevator Buffer can be selected for various passenger elevator projects, including:

• Residential buildings
• Commercial buildings
• Office complexes
• Hotels
• Hospitals
• Institutional buildings
• MR passenger elevators
• MRL passenger elevators
• New elevator installations
• Suitable modernization projects

Final selection should always be based on the technical specifications of the elevator.

Buffer Type Selection

Different elevator systems may require different buffer technologies.

Polyurethane buffers are compact energy-absorbing components suitable for compatible elevator applications according to their rated specifications.

Hydraulic or oil buffers use controlled hydraulic action to absorb and dissipate energy and are selected according to elevator speed, load and system requirements.

The appropriate type should be confirmed during technical selection.

Load and Speed Selection

Correct Elevator Buffer selection depends on several factors, including:

• Elevator rated load
• Passenger capacity
• Rated speed
• Car weight
• Counterweight configuration
• Required buffer stroke
• Available pit depth
• Mounting arrangement
• Number of buffers
• Applicable elevator system requirements

The selected buffer must be suitable for the intended application.

Car & Counterweight Application

Depending on the elevator design, buffers may be installed below the elevator car and counterweight.

The mounting position, supporting structure, required clearance and alignment should be checked carefully during installation.

Pit Installation

Elevator buffers are normally installed at the bottom of the elevator shaft. The pit area should provide adequate structural support, required clearances and access for inspection and maintenance.

Buffer position should correspond correctly with the car or counterweight striking arrangement.

MR & MRL Elevator Compatibility

Depending on the selected model and technical requirements, Elevator Buffers can be used in both Machine Room (MR) and Machine Room-Less (MRL) passenger elevator systems.

Buffer selection should be based on the actual elevator speed, load, pit arrangement and complete elevator design rather than only the elevator type.

Installation and Commissioning

Installation should be carried out by qualified elevator technicians. Mounting, alignment, supporting structure, clearances and related safety arrangements should be checked carefully.

For hydraulic buffers, oil condition, plunger movement and return operation should also be inspected according to the selected model.

The complete elevator safety system should be tested before passenger operation.

Maintenance and Inspection

Regular inspection helps maintain reliable buffer performance. Mounting bolts, structural support, physical condition and clearances should be inspected periodically.

For hydraulic or oil buffers, technicians should also inspect for leakage, corrosion, plunger condition and correct return operation.

Suitable for New Installation & Modernization

The Elevator Buffer can be selected for new elevator installations and suitable modernization projects.

For modernization applications, the existing elevator speed, rated load, car and counterweight arrangement, pit depth, mounting structure and available clearances should be evaluated before selecting replacement buffers.

For enhanced elevator door safety, you can also explore our Elevator Overspeed Governor

Why Choose ORSHA Elevator & Technology?

ORSHA Elevator & Technology supplies elevator components and solutions for new installations, modernization and maintenance projects. Elevator buffers can be selected according to elevator rated load, speed, pit configuration and project requirements.

For correct product selection, please provide elevator rated load, rated speed, car weight, counterweight details, available pit depth and required buffer type before ordering.

Note: Product model, appearance, dimensions, rated load, rated speed, buffer stroke, mounting arrangement and other technical specifications may vary according to the selected buffer type and project requirements. Final specifications and compatibility should be confirmed before purchase and installation.

Elevator Controller selection and installation should follow applicable elevator safety requirements and technical standards. For information about relevant Indian standards and safety requirements, please refer to the Bureau of Indian Standards (BIS).
