Elevator Safety Gear

Elevator Safety Gear

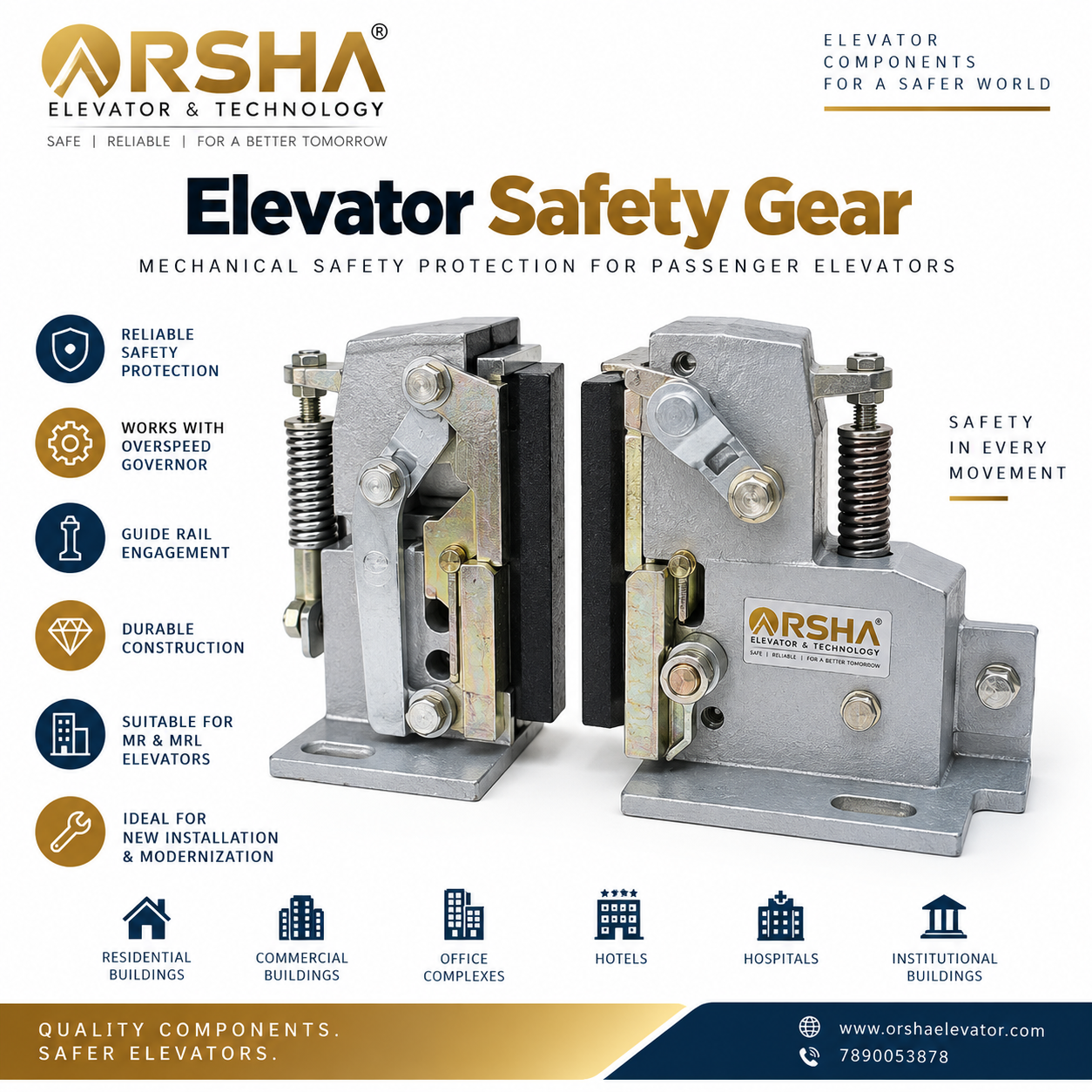

The Elevator Safety Gear is an essential mechanical safety component designed to help stop and secure the elevator car when activated by the overspeed governor system during an abnormal overspeed condition.

It works together with the elevator overspeed governor, governor rope and guide rails as part of the elevator safety system. The correct safety gear must be selected according to elevator rated speed, rated load, guide rail specification and project requirements.

Reliable Elevator Safety Protection

During an overspeed condition, the elevator overspeed governor activates the safety mechanism. The safety gear then engages with the guide rails according to its designed operating principle to help control and stop the elevator car.

Correct selection, installation, adjustment and testing are essential for reliable safety system performance.

Key Features

• Mechanical elevator safety protection
• Works with compatible overspeed governor systems
• Reliable guide rail gripping mechanism
• Suitable for passenger elevator applications
• Available for different load and speed requirements
• Suitable for compatible MR and MRL elevator systems
• Durable mechanical construction
• Designed for professional elevator safety applications
• Suitable for new installations and modernization projects
• Compatible configurations available according to project requirements

Applications

The Elevator Safety Gear can be selected for various passenger elevator applications, including:

• Residential buildings
• Commercial buildings
• Office complexes
• Hotels
• Hospitals
• Institutional buildings
• MR passenger elevators
• MRL passenger elevators
• New elevator installations
• Suitable modernization projects

Final product selection should always be based on the complete elevator design and technical requirements.

Safety Gear Selection

The correct Elevator Safety Gear depends on several technical factors, including:

• Elevator rated load
• Passenger capacity
• Rated speed
• Guide rail size and specification
• Safety gear type
• Overspeed governor specification
• Car frame configuration
• Operating direction
• Installation arrangement
• Complete safety system requirements

These specifications should be verified before ordering and installation.

Overspeed Governor Integration

The safety gear works together with a compatible Elevator Overspeed Governor. When the governor detects an excessive elevator speed according to its designed operating conditions, the mechanical linkage activates the safety gear.

The governor, governor rope, linkage and safety gear should be correctly matched as one complete safety system.

Guide Rail Compatibility

Safety gear operation depends on proper engagement with the elevator guide rails. Guide rail dimensions, running surface condition, alignment and safety gear compatibility should be checked carefully.

Incorrect rail selection, installation or adjustment may affect safety gear operation.

MR & MRL Elevator Applications

Depending on the selected model and elevator configuration, Elevator Safety Gear can be used in Machine Room (MR) and Machine Room-Less (MRL) passenger elevator systems.

Selection should be based on the elevator car frame, rated load, rated speed, guide rail and safety system configuration.

Installation and Adjustment

Installation should be carried out by qualified elevator technicians. Safety gear mounting, mechanical linkage, guide rail clearance, governor connection and related components should be inspected and adjusted carefully.

Both sides of the safety gear system should operate correctly according to the elevator design.

Testing and Commissioning

The complete safety system should be properly tested during elevator commissioning. Overspeed governor operation, mechanical linkage, safety gear engagement and related electrical safety functions should be verified before passenger operation.

Testing should be performed by qualified elevator professionals according to applicable project and regulatory requirements.

Maintenance and Inspection

Regular inspection helps maintain reliable safety gear operation. Mechanical linkage, moving parts, mounting bolts, guide rail contact areas and associated governor components should be checked periodically.

Safety gear should not be unnecessarily activated or adjusted without appropriate technical procedures.

Suitable for New Installation & Modernization

The Elevator Safety Gear can be selected for new elevator installations and suitable modernization projects.

For modernization applications, the existing car frame, guide rails, overspeed governor, rated speed, rated load and safety system configuration should be evaluated before selecting a replacement safety gear.

For enhanced elevator door safety, you can also explore our Elevator Overspeed Governor

Why Choose ORSHA Elevator & Technology?

ORSHA Elevator & Technology supplies elevator components and solutions for new installations, modernization and maintenance projects. Elevator safety gear can be selected according to rated load, elevator speed, guide rail specification and compatible overspeed governor system.

For correct product selection, please provide elevator rated load, passenger capacity, rated speed, guide rail size, car frame details and overspeed governor specifications before ordering.

Note: Product model, appearance, dimensions, rated load, operating speed range, guide rail compatibility, activation mechanism and other technical specifications may vary according to the selected model and project requirements. Final specifications and compatibility should be confirmed before purchase and installation.

Elevator Controller selection and installation should follow applicable elevator safety requirements and technical standards. For information about relevant Indian standards and safety requirements, please refer to the Bureau of Indian Standards (BIS).
